Smart Harmony Keypad, RWPS-2MM is special development for our digital amplifier which provides the volume control and with flexible customized design. It is designed for hotel, hall, home theater application and etc for easier control the volume control and audio source from our amplifier without re-connecting any cables behind the audio devices. Different artistic and cosmetic keypads can be integrated with interior design
Features:
1. Volume Up
Increase the volume by controlling our digital amplifier
2. Volume Down
Decrease the volume by controlling our digital amplifier
3. The keypad has smart blue back light for easier to see the buttons
Cosmetic:
Main Unit Size: 87mm(W) x 87mm(H)
Specifications:
- Low supply voltage range at 3V to 3V6
- Operation max power consumption 150mA
- Sound level indication on panel
- Ten controller steps for sound level
- Two buttons controller on panel
- Two buttons for volume digital interface controller
- Sound terminal voltage output max at 3.3V
- Terminal drain max current at 12mA
- Outlook dimension 87mm x 87mm
- Operating temperature at 0 to 50 ℃

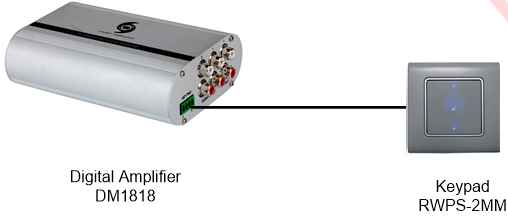

Connections:
