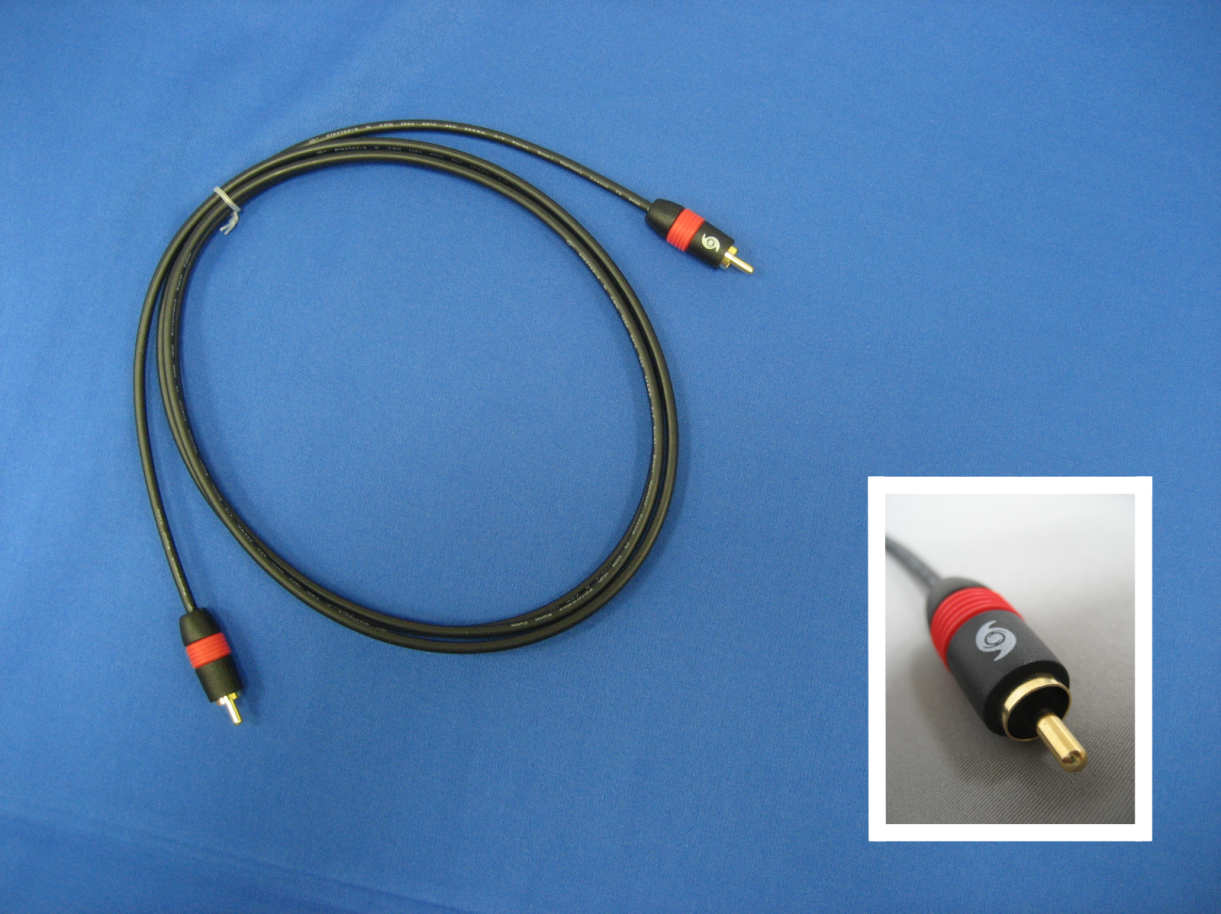

Smart Harmony offers high-quality RCA interconnect cables pre-terminated in commonly used lengths.
Cable Length:
Cable Length: 1.0M, 1.5M, 2.0M, 3.0M, 5.0M, 10M, 12M, 15M and 18M
Specifications:
|
ITEM |
DESCRIPTION |
|
|
Conductor |
AWG |
24 |
|
Material |
Tinned Copper, Oxide-free |
|
|
Size |
7/0.20mm±0.008mm |
|
|
Insulation |
Material |
FM-PE+SKIN |
|
Outer Diameter |
2.8±0.05mm |
|
|
Spiral Copper |
Material |
Tinned Copper |
|
Coverage |
90% |
|
|
Jacket |
Material |
PVC |
|
Color |
Black |
|
|
Outer Diameter |
4.0±0.15mm |
|
|
ELECTRICAL CHARACTERISITICS |
PHYSICAL PROPERTIES |
|
1. Rating: Temp 80℃ at 30V 2. Conductor Resistance: at 20℃ Max 24AWG: 93.25Ω/km 3. Insulation Resistance: 10mΩ/km min at 20℃, DC 500V 4. Dielectric Strength: AC 500/1 min 5. Coaxial Cable Impedance: 75±5Ωat 10MHz |
1. Tensile Strength: Unaged: 1500psi min, Aged: 70% min 2. Elongation: Unaged: 100%, Aged: 65% 3. Heat Shock Test: no cracking 4. Cold Bend Test: no cracking 5. Deformation Test: Max 50% 6. Flame Test: Passed UL VW-1 |
