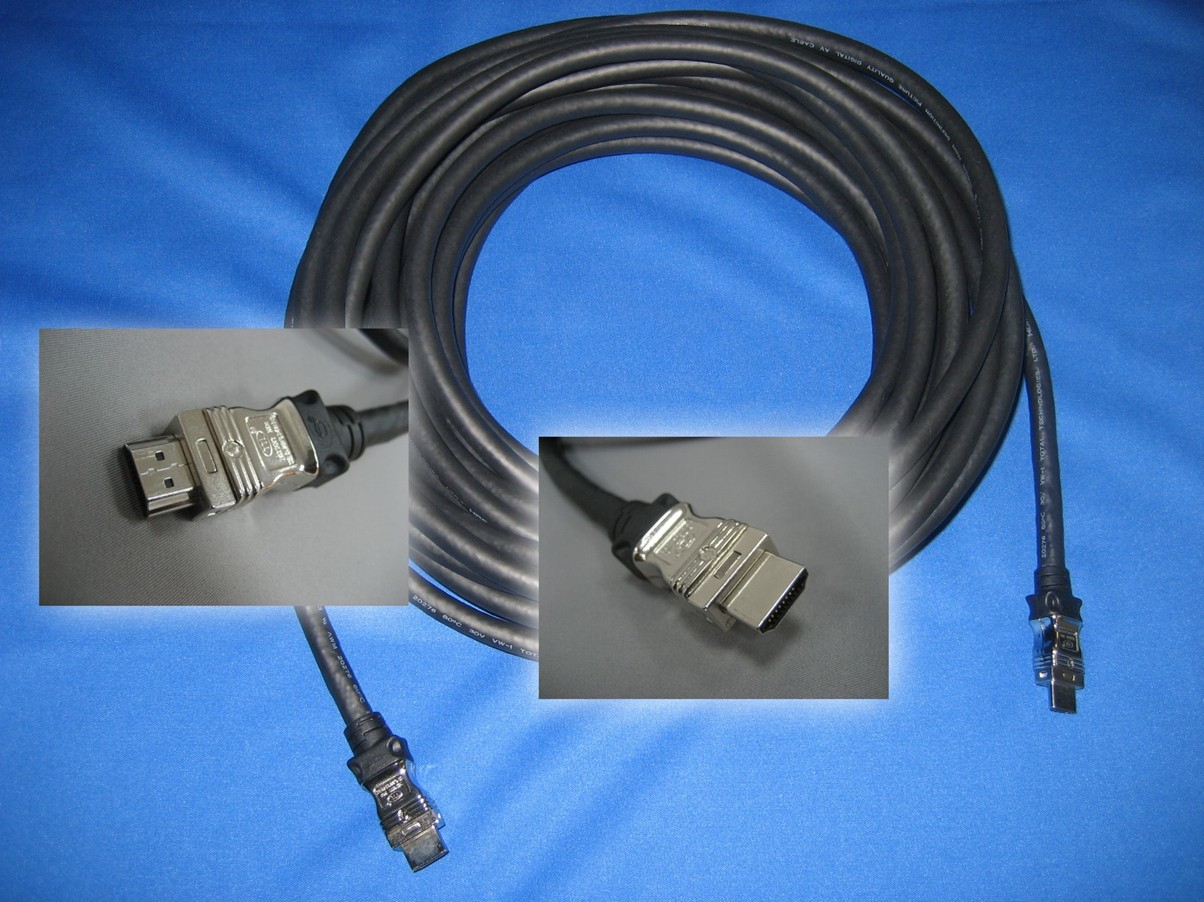

Length

Model

12M

SHC-HI1200

18M

SHC-HI1800

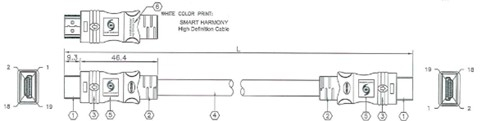

ITEM

DESCRIPTION

QTY

UNIT

1.

HDMI Type A 19 pin Connector, Male with Gold plated pins, Nickel-plated shell UL94V-0

2

pcs

2.

Black Molded PVC Hood

2

pcs

3.

Pat. US 6.287,148 B1 RF-Blok Shielding Metal Can

2

pcs

4.

(100Ω Shielding Twisted Pairs) x 4 + 7C wire; AL-foil+85% Braid; Black PVC Jacket

1

pcs

5.

D-type Sticker

4

pcs

6.

White Color Pad print “SMART HARMONY High Definition Cable” (Optional)

2

pcs

ELECTRICAL CHARCTERISTICS

PHYSICAL PROPERTIES OF JACKET

1. Rating: Temp 80℃ at 30V

2. Conductor Resistance: 20℃ Max

• 28AWG: 237.25Ω/km
• 24AWG: 93.25Ω/km

3. Insulation Resistance:

• DC-500V 100mΩ min at 20℃

4. Fext: at 1-5000MHz -26dB Max

5. Impedance: 100±10Ω

6. Attenuation: (5m):

• at 300MHz-825MHz≦8dB/min
• at 825MHz-2475MHz=21dB/min

• at 2475MHz-4125MHz=30dB/min

7. Time Delay Skew: Intra pair ≦ 151ps

8. Differential Delay: 5.05ns/m

1. Tensile Strength:

• Unaged: 1500psi min
• Aged: 70% min

2. Elongation:

• Unaged: 100%
• Aged: 65%

3. Heat Shock Test: no cracking

4. Cold Bend Test: no cracking

5. Deformation Test: min 50%

6. Flame Test: Passed UL VW-1
