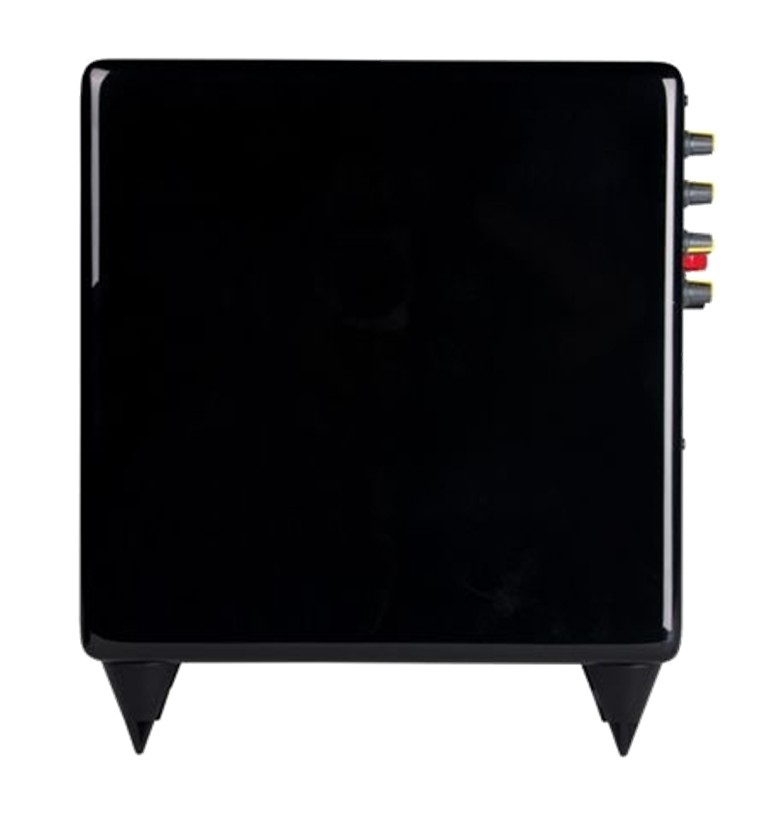

Smart Harmony iSub is a stand-alone powered subwoofer. By connecting the iSub with two compact loudspeakers (not included), it will provide full strength Hi-Fi quality performance. iSub is the powerful active subwoofer with attractive styling outlook. It can be easily installed with any 2.1 home entertainment systems.
Dimension and Weight:
150W x 350H x 320D (mm)
7kg
Specifications:
1. Cabinet thickness: 12mm with High Gloss (White and Black)
2. Grill Cloth: Gray
3. Woofer: 6 1/2 inches
4. Frequency Response: 65-250Hz
5. Impedance: 4Ω
6. Power Handling 50W – 100W
|
Measuring Item |
Condition |
Unit |
Nominal |
Limit |
Data |
|
Input Sensitivity (50mv input) |
L |
v |
1.5 |
±0.2 |
1.5 |
|
R |
v |
1.5 |
±0.2 |
1.5 |
|
|
Subwoofer |
v |
4.5 |
±0.5 |
4.5 |
|
|
THD 10% Output Power (EIA) |
L |
v |
20 |
±5 |
20 |
|
R |
v |
20 |
±5 |
20 |
|
|
Subwoofer |
v |
20 |
±5 |
20 |
|
|
Power Handling |
50w (100w Max.) |
||||
|
lnput Impedance |
|
ohm |
47k |
±10 |
10 |
|
Speaker Impedance |
|
ohm |
10 |
±3 |
10 |
|
Impedance |
4 ohm |
||||
|
Distortion (1v input) |
1 watt |
% |
0.1 |
±10 |
0.06% |
|
Frequency Response |
65Hz - 250Hz |
||||
|
S/N Ration |
|
dB |
70 |
±10 |
60 |
|
Hum and Noise (MIN Vol) |
L |
mv |
1.5 |
±0.5 |
1.2 |
|
R |
mv |
1.5 |
±0.5 |
1.2 |
|
|
Subwoofer |
mv |
2 |
±0.5 |
2 |
|
|
Hum and Noise (MAX Vol) |
Subwoofer |
mv |
4 |
±0.5 |
2.5 |
