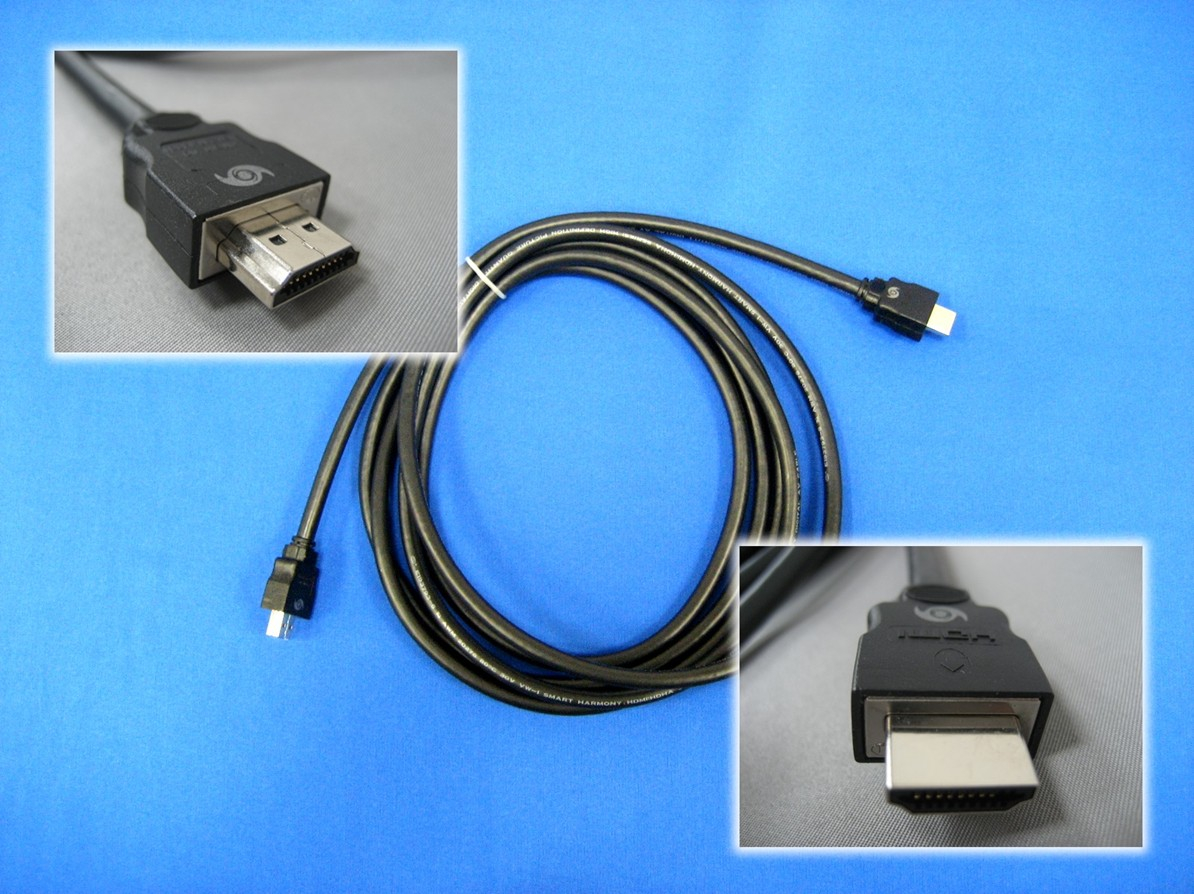

Smart Harmony offers high-quality HDMI AV cables pre-terminated in commonly used lengths.
Cable Length:
|
Length |
Model |
|
0.5M |
SHC-HD0050 |
|
1.0M |
SHC-HD0100 |
|
1.5M |
SHC-HD0150 |
|
2.0M |
SHC-HD0200 |
|
3.0M |
SHC-HD0300 |
|
5.0M |
SHC-HD0500 |

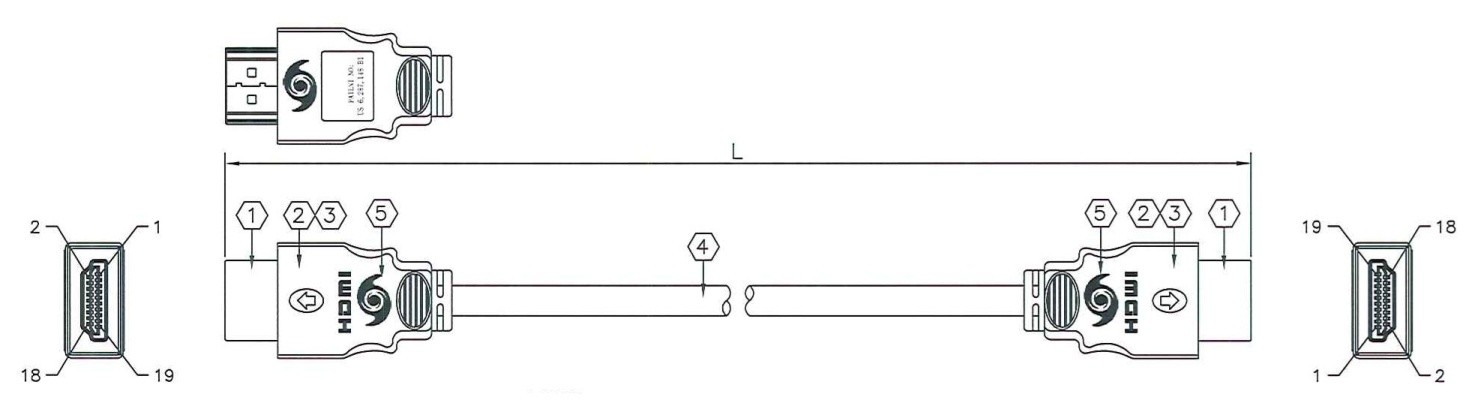

Specifications:
|
ITEM |
DESCRIPTION |
QTY |
UNIT |
|
1. |
HDMI Type A 19pin Connector, Male with Gold plated pins |
2 |
pcs |
|
2. |
Black Molded PVC Hood |
2 |
pcs |
|
3. |
Pat. US 6.287,148 B1 RF-Blok Shielding Metal Can |
2 |
pcs |
|
4. |

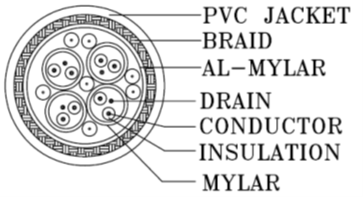

(100Ω Shielding Twisted Pairs) x 4 + 7C wire; AL-foil+85% Braid; Black PVC Jacket |
1 |
pcs |
|
5. |
Gray Color “Smart Harmony” Silk Screen |
4 |
pcs |

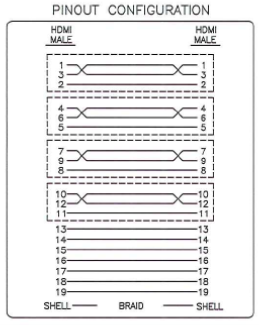

COLOR CODE:
|
(1P+AEM)*4C: 1. White/Red, 2. White/Green 3. White/Brown 4. White/Blue |
7C*28AWG 1. Black 2. Brown 3. Red 4. Orange 5. Yellow 6. White 7. Blue |
Cable Feature
- Lead-free cable
- HDMI ATC 1.3b CAT1 & CAT2 certified cable
- Printed “AWM 20276 80℃ 30V VW-1 SMART HARMONY. HDMI (HDMI SERIES) HIGH DEFINITION PICTURE QUANTITY DIGITAL AV CABLE”.
Connector Feature
- Die-cast metal can with PVC hood
- Gold-plated pins
- Nickel-plated connector shell
